China 2 2 Seater Electric Aluminium Chassis Golf Car with Ce Certificate

Product Description

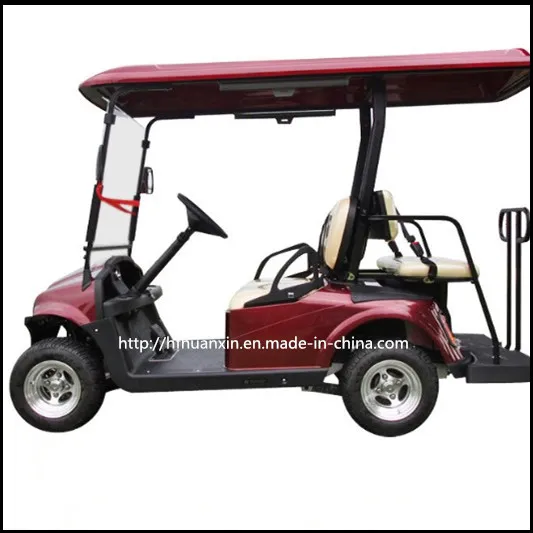

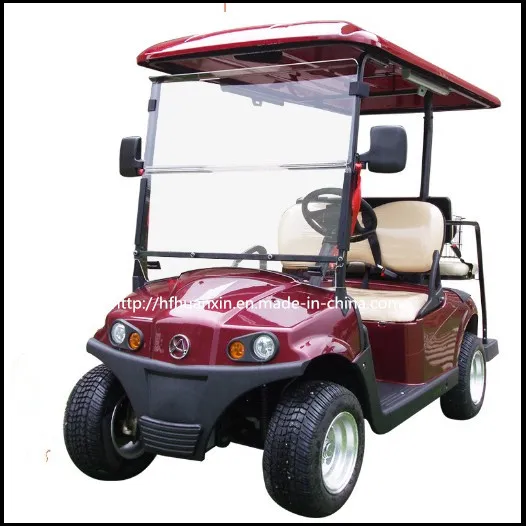

2+2 Seater Electric Aluminium Chassis Golf Car with Ce Certificate

Product Description

Application

Specifications

motor	AC 4kw (with electromagnetic brake)
Controller	USA CURTIS:1234E-5221/AC 275A
Rear axle	CVT rear axle (exclusive imported product)
accelerator	Non-contact angle sensor accelerator (completely sealed/patent product)
Steering system	Dual direction gear, rack steering system (automatic gap compensation function)
Front cushioning	RD double swing arm independent suspension
Rear cushioning	Independent suspension spring hydraulic cushioning (semi-independent suspension)
Vehicle exterior trimming	PP engineering plastic, mold tinting
Meter	Digital Meter, electric meter, speed forward, backward, fast speed, slow speed display
Seat	Low back soft seat
Tire	USA CARLISLE 205/50-10 Tire, better wear resistance
Brake system	Dual security by electric brake and hydraulic disc brake on four wheels,bring safer braking results(automatic parking,patent product)
Vehicle color	Ordinary color, special colors will incur additional charge
Bottom plate	PP battery plastic bottom plate (anti-rust, anti-corrosion)
Chassis	High strength aluminum structural main girder (solid, durable, anti-corrosion)
Electric start lock	Imported components
Forward/backward gear switch	Imported components
Ground clearance	120 mm
Front/back wheel width	1080 mm front/ 1190 mm back
Wheel base	1650 mm
Minimum turning radius	2.6 m
Highest forward speed	18~40 km/h adjustable, configured for fast and low gear switch
Gradeability	<=40%
Range (flat ground)	100-120 km
Net weight	305 kg
Vehicle dimension (LWH)	268011901900 mm
Tow truck switch	Easier, faster check and repair
Rear view mirror	Rear view mirror
Wheel rim	Steel rim
Wind shield	One piece
