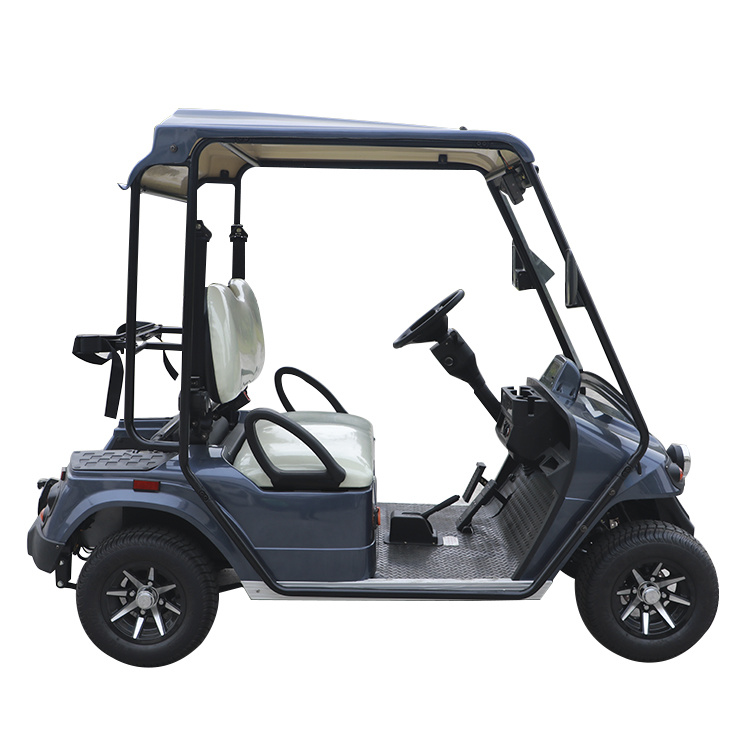

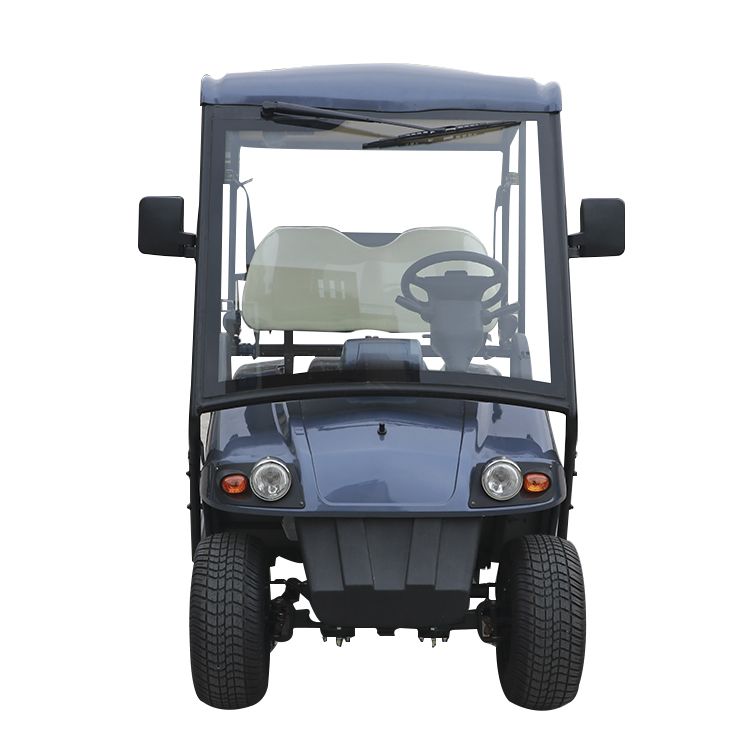

High Performance Custom 2 Seater Electric Golf Cart

Quick Details
System    36V/3KW Sepex    48V/3KW Sepex    48V/4KW Sepex    48V/4KW AC
 Key Components
Battery
6PCSxT105

(185Ah@5hr rate)

6PCSxT875

(145Ah@5hr rate)

6PCSxT875

(145Ah@5hr rate)

6PCSxT875

(145Ah@5hr rate)

Motor    3KW ADC motor    3KW ADC motor     3.8KW Chinese motor    3.8KW AC motor
Controller    Curtis 1243 (300A@2minutes)    Curtis 1266A (275A@2minutes    Curtis 1268 (400A@2minutes)    Zapi ACE0
(280A@2minutes)
Performance
Passenger capacity    2    2    2    2
Range (loaded) based on flat road at a speed of 20km/h (km)*    >60    >60    >60    >80
Max. speed @12.76:1 gear ratio    20    25    32    32
Max. speed @10.26:1 gear ratio    25    40    40    40
Minimum turning radius (m)    3.5    3.5    3.5    3.5
Max. climbing ability (loaded)   @ 12.76:1 gear ratio    20%    25%    25%    25%
Max. climbing ability (loaded)   @ 10.26:1 gear ratio    15%    20%    20%    20%
Max. movement after brake at speed of 20km/h    ≤4m    ≤4m    ≤4m    ≤4m
Max. loading weight    150kgs    150kgs    150kgs    150kgs
Net weight    470kgs    480kgs    480kgs    473kgs
Dimensions
Overall dimensions (mm)    2350X1180X1800
Min. ground clearance(mm)    120
Wheelbase (mm)    1700
Front wheel tread (mm)    855
Rear wheel tread (mm)    975
